WebElements Periodic Table of the Elements | Tin

Tin compounds: tin tetrabromide

The tin in tin tetrabromide formally is in the oxidation state 4.

Tin tetrabromide

Formula as often written: SnBr₄
Hill system formula: Br₄Sn₁
CAS registry number: [7789-67-5]
Formula weight: 438.326
Class: bromide

Synonyms

tin tetrabromide
tin(IV) bromide
stannic bromide
tin bromide

Physical properties

Colour: white
Appearance: crystalline solid
Melting point: 31°C
Boiling point: 202°C
Density: 3300 kg m^-3

Suppliers

Coming soon...

Element analysis

Element percentages for the elements in tin tetrabromide
Element	%
Br	72.92
Sn	27.08

Synthesis

Not available

Solid state structure

Geometry of tin:
Prototypical structure:

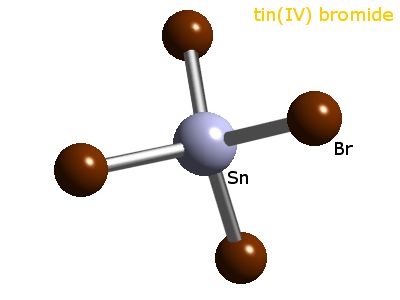

Crystal structure of tin tetrabromide

Isotope pattern

What follows is the calculated isotope pattern for the SnBr₄ unit with the most intense ion set to 100%.

Formula: Sn₁Br₄

mass  %
428   0.3
429   0.0
430   1.4 _
431   0.1
432   7.0 ____
433   2.8 _
434  27.2 ______________
435  12.5 ______
436  65.8 _________________________________
437  24.2 ____________
438 100.0 __________________________________________________
439  23.9 ____________
440  96.3 ________________________________________________
441  11.9 ______
442  59.0 ______________________________
443   2.4 _
444  24.5 ____________
445   0.0
446   7.9 ____
447   0.0
448   1.6 _

References

The data on these compounds pages are assembled and adapted from the primary literature and several other sources including the following.

R.T. Sanderson in Chemical Periodicity, Reinhold, New York, USA, 1960.
N.N. Greenwood and A. Earnshaw in Chemistry of the Elements, 2nd edition, Butterworth, UK, 1997.
F.A. Cotton, G. Wilkinson, C.A. Murillo, and M. Bochmann, in Advanced Inorganic Chemistry, John Wiley & Sons, 1999.
A.F. Trotman-Dickenson, (ed.) in Comprehensive Inorganic Chemistry, Pergamon, Oxford, UK, 1973.
R.W.G. Wyckoff, in Crystal Structures, volume 1, Interscience, John Wiley & Sons, 1963.
A.R.West in Basic solid state chemistry Chemistry, John Wiley & Sons, 1999.
A.F. Wells in Structural inorganic chemistry, 4th edition, Oxford, UK, 1975.
J.D.H. Donnay, (ed.) in Crystal data determinative tables, ACA monograph number 5, American Crystallographic Association, USA, 1963.
D.R. Lide, (ed.) in Chemical Rubber Company handbook of chemistry and physics, CRC Press, Boca Raton, Florida, USA, 77th edition, 1996.
J.W. Mellor in A comprehensive treatise on inorganic and theoretical chemistry, volumes 1-16, Longmans, London, UK, 1922-1937.
J.E. Macintyre (ed.) in Dictionary of inorganic compounds, volumes 1-3, Chapman & Hall, London, UK, 1992.
