Palladium

Palladium: crystal structure

Here is some information about the crystal structure of palladium.

• Space group: Fm-3m (Space group number: 225)
• Structure: ccp (cubic close-packed)
• Cell parameters:
  • a: 389.07 pm
  • b: 389.07 pm
  • c: 389.07 pm
  • α: 90.000°
  • β: 90.000°
  • γ: 90.000°

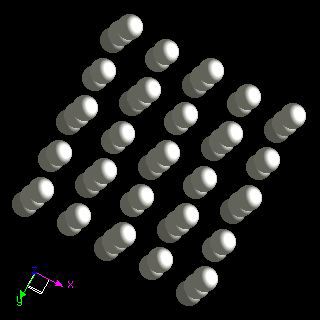

You may view the structure of palladium:

• interactively (Jmol) or
• non-interactively

References

C. N. Rao, and K. K. Rao, Can. J. Phys., 1964, 42, 1336.
