The essentials

Description

Here is a brief description of thulium.

• Standard state: solid at 298 K
• Colour: silvery white
• Classification: Metallic
• Availability:

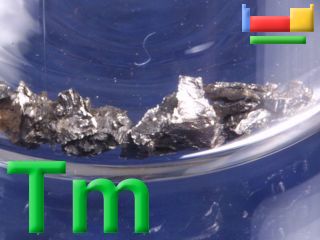

This sample is from The Elements Collection, an attractive and safely packaged collection of the 92 naturally occurring elements that is available for sale.

Thulium is the least abundant of the earth elements, and is about as rare as silver, gold, or cadmium.

The pure metal has a bright, silvery lustre. It is reasonably stable in air, but the metal must be protected from moisture. The element is silvery-grey, soft, malleable, and ductile, and can be cut with a knife. It is a rare earth metal found in minerals such as monazite.

Isolation

Thulium metal is available commercially so it is not normally necessary to make it in the laboratory, which is just as well as it is difficult to isolate as the pure metal. This is largely because of the way it is found in nature. The lanthanoids are found in nature in a number of minerals. The most important are xenotime, monazite, and bastnaesite. The first two are orthophosphate minerals LnPO₄ (Ln deonotes a mixture of all the lanthanoids except promethium which is vanishingly rare) and the third is a fluoride carbonate LnCO₃F. Lanthanoids with even atomic numbers are more common. The most comon lanthanoids in these minerals are, in order, cerium, lanthanum, neodymium, and praseodymium. Monazite also contains thorium and ytrrium which makes handling difficult since thorium and its decomposition products are radioactive.

For many purposes it is not particularly necessary to separate the metals, but if separation into individual metals is required, the process is complex. Initially, the metals are extracted as salts from the ores by extraction with sulphuric acid (H₂SO₄), hydrochloric acid (HCl), and sodium hydroxide (NaOH). Modern purification techniques for these lanthanoid salt mixtures are ingenious and involve selective complexation techniques, solvent extractions, and ion exchange chromatography.

Pure thulium is available through the reduction of TmF₃ with calcium metal.

2TmF₃ + 3Ca → 2Tm + 3CaF₂

This would work for the other calcium halides as well but the product CaF₂ is easier to handle under the reaction conditions (heat to 50°C above the melting point of the element in an argon atmosphere). Excess calcium is removed from the reaction mixture under vacuum.
