Valence f-orbital R(max): period 6spd

This gives calculated values of Rmax, the radius at which the magnitude of wave function is greatest, for the valence f orbitals.

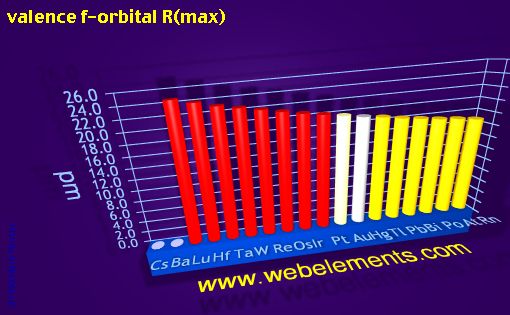

image showing valence f-orbital R(max): period 6spd periodic periodicity for 6s, 6p, and 6d chemical elements

Units

pm

Notes

Values given in the original literature are in atomic units (= 52.92 pm). Values given here in pm here are obtained by multiplying the original value 52.92.

For access to each orbital types select from the list:

For access to each orbital types in AU units, select from the list:

Literature sources

  1. J.B. Mann, Atomic Structure Calculations II. Hartree-Fock wave functions and radial expectation values: hydrogen to lawrencium, LA-3691, Los Alamos Scientific Laboratory, 1968.
