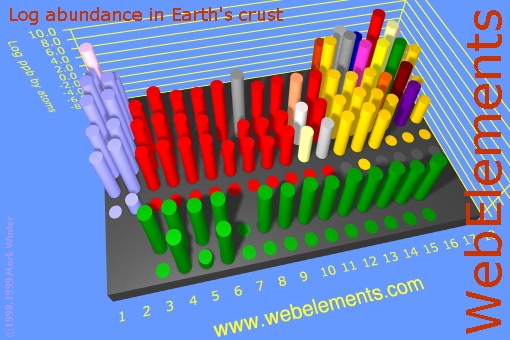

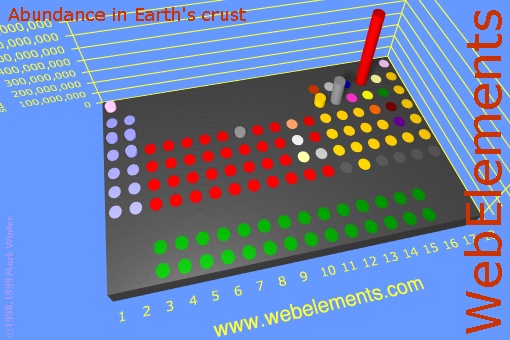

Abundance in Earth's crust: cylinders
These data reflect the average composition of continental crustal rocks. Units are parts per billion by atoms.
ppb by atoms
Data given in different sources vary quite widely, reflecting the difficulty in assessing these numbers. Values given here are estimates of the average composition of continental crust and are derived by a consensus and averaging process for data abstracted from references 1-8. Values for the more rare elements are probably accurate to within an order of magnitude. Values in any particular location may be very different from those given here.
The units used in WebElements for all abundance data are ppb by weight which means parts per billion by weight, that is mg tonne-3 or mg per 1000 kg. All abundance data are also presented as ppb by atoms, which means atoms of the element per billion atoms.
The reason for rescaling all data is as follows. It is common to see, say, solar abundances expressed as the number of atoms of the element relative to a scale upon which the abundance of hydrogen is defined as 1012. This makes comparison with, say, crustal abundances difficult, since crustal abundances are often expressed in terms of parts per million by weight. Hence a common scale is used throughout and I chose ppb as this gives manageable numbers for most elements.
For access to other abundance data as ppb by weight, select from:
For access to other abundance data as ppb by atoms, select from:
- W.W. Porterfield in Inorganic chemistry, a unified approach, Addison Wesley Publishing Co., Reading Massachusetts, USA, 1984.
- I.S. Butler and J.F. Harrod in Inorganic Chemistry, Principles and Applications, Benjamin Cummings, California, USA, 1989.
- G.W.C. Kaye and T.H. Laby in Tables of physical and chemical constants, Longman, London, UK, 15th edition, 1993.
- N.N. Greenwood and A. Earnshaw in Chemistry of the Elements, 2nd edition, Butterworth, UK, 1997.
- J.E. Huheey, E.A. Keiter, and R.L. Keiter in Inorganic Chemistry : Principles of Structure and Reactivity, 4th edition, HarperCollins, New York, USA, 1993.
- P.A. Cox in The Elements : Their Origin, Abundance, and Distribution, Oxford University Press, Oxford, UK, 1989.
- McGraw-Hill Encyclopedia of Science & Technology, 7th ed., 1992, McGraw-Hill, New York, USA.
- A.M. James and M.P. Lord in Macmillan's Chemical and Physical Data, Macmillan, London, UK, 1992.
