WebElements Periodic Table of the Elements | Uranium

Uranium compounds: diuranium trinitride

The uranium in diuranium trinitride formally is in the oxidation state .

Diuranium trinitride

Formula as often written: U₂N₃
Hill system formula: N₃U₂
CAS registry number: [12033-83-9]
Formula weight: 518.078
Class: nitride

Synonyms

diuranium trinitride
uranium nitride

Physical properties

Colour: dark grey
Appearance: crystalline solid
Melting point: 900°C (decomposes to UN.)
Boiling point:
Density: 11300 kg m^-3

Suppliers

Coming soon...

Element analysis

Element percentages for the elements in diuranium trinitride
Element	%
N	8.11
U	91.89

Synthesis

Not available

Solid state structure

Geometry of uranium:
Prototypical structure:

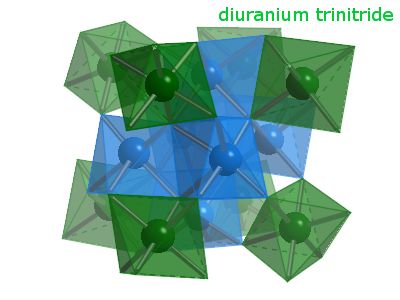

Crystal structure of diuranium trinitride

Isotope pattern

What follows is the calculated isotope pattern for the U₂N₃ unit with the most intense ion set to 100%.

Formula: U₂N₃

mass  %
512   0.0
513   0.0
514   0.0
515   1.4 _
516   0.0
517   0.0
518 100.0 __________________________________________________
519   1.1 _
520   0.0

References

The data on these compounds pages are assembled and adapted from the primary literature and several other sources including the following.

R.T. Sanderson in Chemical Periodicity, Reinhold, New York, USA, 1960.
N.N. Greenwood and A. Earnshaw in Chemistry of the Elements, 2nd edition, Butterworth, UK, 1997.
F.A. Cotton, G. Wilkinson, C.A. Murillo, and M. Bochmann, in Advanced Inorganic Chemistry, John Wiley & Sons, 1999.
A.F. Trotman-Dickenson, (ed.) in Comprehensive Inorganic Chemistry, Pergamon, Oxford, UK, 1973.
R.W.G. Wyckoff, in Crystal Structures, volume 1, Interscience, John Wiley & Sons, 1963.
A.R.West in Basic solid state chemistry Chemistry, John Wiley & Sons, 1999.
A.F. Wells in Structural inorganic chemistry, 4th edition, Oxford, UK, 1975.
J.D.H. Donnay, (ed.) in Crystal data determinative tables, ACA monograph number 5, American Crystallographic Association, USA, 1963.
D.R. Lide, (ed.) in Chemical Rubber Company handbook of chemistry and physics, CRC Press, Boca Raton, Florida, USA, 77th edition, 1996.
J.W. Mellor in A comprehensive treatise on inorganic and theoretical chemistry, volumes 1-16, Longmans, London, UK, 1922-1937.
J.E. Macintyre (ed.) in Dictionary of inorganic compounds, volumes 1-3, Chapman & Hall, London, UK, 1992.
