Platinum compounds: platinum oxide

platinum symbol icon

The platinum in platinum oxide formally is in the oxidation state 2.

Crystal structure of platinum oxide

Platinum oxide

  • Formula as often written: PtO
  • Hill system formula: O1Pt1
  • CAS registry number: [12035-82-4]
  • Formula weight: 211.077
  • Class: oxide

Synonyms

  • platinum oxide
  • platinum(II) oxide

Physical properties

  • Colour: black or violet-black
  • Appearance: crystalline solid
  • Melting point: 325°C (decomposes)
  • Boiling point:
  • Density: 14100 kg m-3

Suppliers

Coming soon...

Element analysis

Element percentages for the elements in platinum oxide
Element %
O 7.58
Pt 92.42

Synthesis

Probably not made pure.

Solid state structure

  • Geometry of platinum:
  • Prototypical structure:

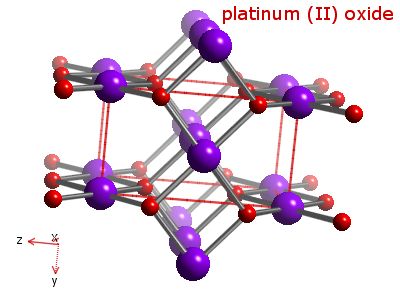

Crystal structure of platinum oxide

Isotope pattern

What follows is the calculated isotope pattern for the PtO unit with the most intense ion set to 100%.

Formula: Pt1O1

mass  %
206   0.0
207 0.0
208 2.3 _
209 0.0
210 97.3 _________________________________________________
211 100.0 __________________________________________________
212 75.1 ______________________________________
213 0.2
214 21.4 ___________
215 0.0
216 0.0

References

The data on these compounds pages are assembled and adapted from the primary literature and several other sources including the following.

  • R.T. Sanderson in Chemical Periodicity, Reinhold, New York, USA, 1960.
  • N.N. Greenwood and A. Earnshaw in Chemistry of the Elements, 2nd edition, Butterworth, UK, 1997.
  • F.A. Cotton, G. Wilkinson, C.A. Murillo, and M. Bochmann, in Advanced Inorganic Chemistry, John Wiley & Sons, 1999.
  • A.F. Trotman-Dickenson, (ed.) in Comprehensive Inorganic Chemistry, Pergamon, Oxford, UK, 1973.
  • R.W.G. Wyckoff, in Crystal Structures, volume 1, Interscience, John Wiley & Sons, 1963.
  • A.R.West in Basic solid state chemistry Chemistry, John Wiley & Sons, 1999.
  • A.F. Wells in Structural inorganic chemistry, 4th edition, Oxford, UK, 1975.
  • J.D.H. Donnay, (ed.) in Crystal data determinative tables, ACA monograph number 5, American Crystallographic Association, USA, 1963.
  • D.R. Lide, (ed.) in Chemical Rubber Company handbook of chemistry and physics, CRC Press, Boca Raton, Florida, USA, 77th edition, 1996.
  • J.W. Mellor in A comprehensive treatise on inorganic and theoretical chemistry, volumes 1-16, Longmans, London, UK, 1922-1937.
  • J.E. Macintyre (ed.) in Dictionary of inorganic compounds, volumes 1-3, Chapman & Hall, London, UK, 1992.
