Palladium compounds: palladium tetrafluoride

palladium symbol icon

The palladium in palladium tetrafluoride formally is in the oxidation state 4.

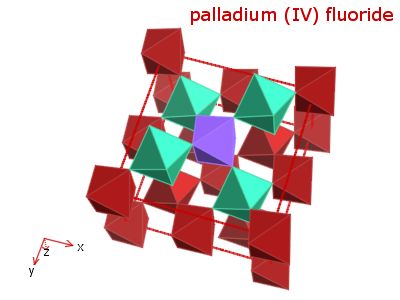

Crystal structure of palladium tetrafluoride

Palladium tetrafluoride

  • Formula as often written: PdF4
  • Hill system formula: F4Pd1
  • CAS registry number: [13709-55-2]
  • Formula weight: 182.414
  • Class: fluoride

Synonyms

  • palladium tetrafluoride
  • palladium(IV) fluoride
  • palladium fluoride

Physical properties

  • Colour: brick-red
  • Appearance: crystalline solid
  • Melting point:
  • Boiling point:
  • Density:

Suppliers

Coming soon...

Element analysis

Element percentages for the elements in palladium tetrafluoride
Element %
F 41.66
Pd 58.34

Synthesis

Not available

Solid state structure

  • Geometry of palladium:
  • Prototypical structure:

Crystal structure of palladium tetrafluoride

Isotope pattern

What follows is the calculated isotope pattern for the PdF4 unit with the most intense ion set to 100%.

Formula: Pd1F4

mass  %
178   3.7 __
179 0.0
180 40.8 ____________________
181 81.7 _________________________________________
182 100.0 __________________________________________________
183 0.0
184 96.8 ________________________________________________
185 0.0
186 42.9 _____________________

References

The data on these compounds pages are assembled and adapted from the primary literature and several other sources including the following.

  • R.T. Sanderson in Chemical Periodicity, Reinhold, New York, USA, 1960.
  • N.N. Greenwood and A. Earnshaw in Chemistry of the Elements, 2nd edition, Butterworth, UK, 1997.
  • F.A. Cotton, G. Wilkinson, C.A. Murillo, and M. Bochmann, in Advanced Inorganic Chemistry, John Wiley & Sons, 1999.
  • A.F. Trotman-Dickenson, (ed.) in Comprehensive Inorganic Chemistry, Pergamon, Oxford, UK, 1973.
  • R.W.G. Wyckoff, in Crystal Structures, volume 1, Interscience, John Wiley & Sons, 1963.
  • A.R.West in Basic solid state chemistry Chemistry, John Wiley & Sons, 1999.
  • A.F. Wells in Structural inorganic chemistry, 4th edition, Oxford, UK, 1975.
  • J.D.H. Donnay, (ed.) in Crystal data determinative tables, ACA monograph number 5, American Crystallographic Association, USA, 1963.
  • D.R. Lide, (ed.) in Chemical Rubber Company handbook of chemistry and physics, CRC Press, Boca Raton, Florida, USA, 77th edition, 1996.
  • J.W. Mellor in A comprehensive treatise on inorganic and theoretical chemistry, volumes 1-16, Longmans, London, UK, 1922-1937.
  • J.E. Macintyre (ed.) in Dictionary of inorganic compounds, volumes 1-3, Chapman & Hall, London, UK, 1992.
